Product description - The Bluefish444 Advantage

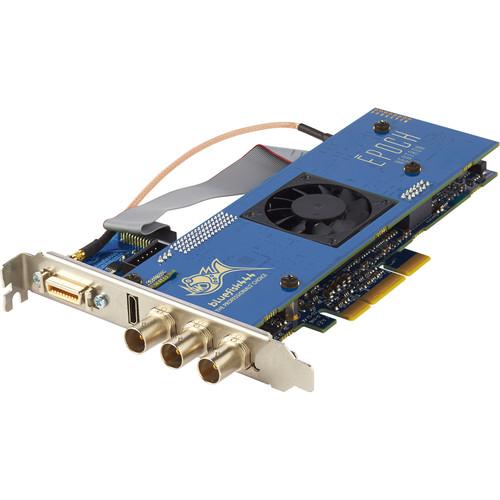

The Epoch | Neutron from Bluefish444 is a bi-directional I/O PCIe card for capturing or playback applications that require 2K/HD/SD SDI signals and HDMI monitoring. At half the length of a full-size PCIe card, the Epoch | Neutron takes the functionality of a larger card and packs it into a form factor that allows for easy integration with rack mounts, smaller form computers, and portable PCIe or Thunderbolt enclosures.
This model comes with a full-height shield with connectivity for AES/EBU digital audio, analog audio, and RS-422 control, which are all available via an included breakout cable. An "LP" model is available separately that forgoes the audio connectivity for a low-profile shield for increased compatibility with compact expansion chassis.
Featuring three BNC connectors, the Epoch | Neutron supports single-link or dual-link HD-SDI signals to support 2K/HD input or output at up to 30 fps via single-link, and up to 60 fps via dual-link. For cost-effective monitoring, the card also features an HDMI output. Like other Bluefish444 cards, Neutron cards use a 12-bit processing pipeline to maintain the full quality of your source material. Additional features such as a low-latency hardware video keyer, and compatibility with industry standard Bluefish444 and 3rd party software make the Epoch | Neutron ideal for a variety of applications and workflows, including editing, color correction, video streaming, production, mobile production, digital intermediate, and image quality control. - Bi-Directional SDI Inputs/Outputs
-
- Can playout 2K/HD over HD-SDI or HDMI, or capture 2K/HD over HD-SDI
- 3x BNC connectors that each support HD/SD-SDI input and output signals
- Dual-link HD-SDI support
- One multi-format BNC connector supports genlock input in additional to video signals
- Additional Connectivity
- Breakout cable provides:
- RS-422 interface for control of VTRs and other serial controlled devices
- 8 channels of AES/EBU audio input and output for capture and playout of digital audio, including 7.1 surround sound monitoring
- 2 channels of analog audio output (RCA connectors) for stereo monitoring
- Auxiliary genlock connector
- HDMI Monitoring
-
- HDMI 1.4 output for cost-effective monitoring
- Supports deep color and 2K/HD resolutions
- Thunderbolt Expansion Chassis Compatibility
-
- Works with portable PCIe and Thunderbolt expansion chassis, from small single-slot devices to larger multi-slot options
- Compatible with select Sonnet, Magma, and Netstor chassis
- Visit Bluefish444's website for a full list of qualified 3rd party chassis options
- 12-Bit Processing Pipeline
-
- Allows 8-, 10-, and 12-bit SDI video signals to be produced from 8-, 10-, 12-, and 16-bit pixel formats for the highest quality from your source material
- 4096 discrete values of red, green, and blue are maintained per pixel
- 64 times the color precision of a traditional 10-bit processing pipeline
- 4 x 4 x 32-Bit Color Matrix
-
- Color space conversion image processing includes a fully programmable 4 x 4 x 32-bit color matrix
- Reduces colorspace conversion errors and ensures color accuracy during capture, monitoring, and mastering
- Primary Hardware Color Corrector
-
- 4 x 1D x 12-bit LUTs on all SDI outputs gives control over lift, gamma, and gain prior to monitoring or mastering your content
- When the programmable 4 x 4 x 32-bit color matrix is combined with the onboard 1D LUTs, it provides a powerful hardware color corrector
- Low-Latency Video Hardware Keyer
-
- Allows video layers to be combined in hardware with only microseconds of delay
- Enables animated logos, captions, ticker tapes, etc. to be keyed over live video feeds at full 12-bit precision and with minimum input to output delay
- Hardware keyer can also function as an image pre-multiplier to assist in previewing images with alpha data
- Bluefish444 Symmetry Included
-
- Integrated DI acquisition, review, and play out software
- Windows compatible
- Work in 10-bit RGB or 10-bit YUV color space
- Flexible and intuitive interface
- 3rd Party Software Compatibility
-
- Adobe Premiere Pro CC
- Adobe After Effects CC
- Adobe SpeedGrade CC
- Adobe Audition CC
- AVID Media Composer
- AVID Pro Tools
- Assimilate SCRATCH
- Bluefish444 Fluid ingeSTore
- Bluefish444 Symmetry
- DrasticPreview Pro
- Drastic Media NXS
- Telestream Wirecast
- vMix
- Additional Hardware Features
-
- 4-lane PCI-Express (8 and 16 lane compatible)
- High-performance bypass relays
- Automatic cross-locking and intelligent output phasing across formats
- Audio sample rate converters
- Master Routing Resource (MR2)
- Input Stream Integrity Management 9ISIM)
- Full duplex DMA data transfer bandwidth 1.1 GB/s
- 256MB onboard memory
In the Box BlueFish444 Epoch | Neutron Breakout Cable Bluefish444 Symmetry Software (Windows) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BlueFish444 Epoch | Neutron in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlueFish444 Neutron Specs | Interface | 4-Lane PCI-Express (8- and 16-lane compatible) | | Card Length | Half length | | Input / Output | 3 x bi-directional HD/SD-SDI, ASI (BNC) (one connector supports bi-level and tri-level analog genlock A/B)
1 x HDMI 1.4 output
Using Included Breakout Cable:
8 x AES ID3 audio input (unbalanced, BNC)
8 x AES ID3 audio output (unbalanced, BNC)
2 x Analog audio outputs (-10 dBu, unbalanced, RCA)
1 x RS-422
1 x Auxiliary genlock (BNC) | | SDI Formats Supported | SD-SDI (SMPTE 295M)
HD-SDI (SMPTE 292M)
Dual link HD-SDI (SMPTE 372M) | | Embedded Audio | 16 channels of embedded audio per SDI input/output
Dolby Digital pass-through SDI | | HANC I/O | RP188 timecode
16 channels of embedded audio per SDI
Video payload ID
Custom packets | | VBI / VANC I/O | Closed captioning
3 line VITC
Custom packets | | DMA Data Transfer Bandwidth | 1.1 GB/s full duplex DMA data transfer bandwidth | | On Board Memory | 256 MB | | Resolutions & Frame Rates | YUV SDI Video Modes
720 x 486i @ 29.97 fps (NTSC)
720 x 576i @ 25 fps (PAL)
1280 x 720p @ 23.976, 24, 25, 29.97, 30, 50, 59.94, 60 fps
1920 x 1080i @ 25, 29.97, 30 fps
1920 x 1080p/PsF @ 23.976, 24, 25, 29.97, 30 fps
1920 x 1080p/PsF @ 48, 50, 59.94, 60 fps (dual-link HD-SDI only)
1920 x 1080p/PsF @ 23.976, 24, 25, 29.97, 30 fps
2048 x 1080p/PsF @ 23.976, 24, 25, 29.97, 30 fps
2048 x 1080p/PsF @ 48, 50, 59.94, 60 fps (dual-link HD-SDI only)
RGB SDI Video Modes
720 x 486i @ 29.97 fps (NTSC) (dual-link HD-SDI only)
720 x 576i @ 25 fps (PAL) (dual-link HD-SDI only)
1920 x 1080i @ 25, 29.97, 30 fps (dual-link HD-SDI only)
1920 x 1080p/PsF @ 23.976, 24, 25, 29.97, 30 fps (dual-link HD-SDI only)
2048 x 1080p/PsF @ 23.976, 24, 25, 29.97, 30 fps (dual-link HD-SDI only) | | Supported Pixel Formats | 2VUY, YUVS, BV8, V210, AYUV_4224, AYUV_4444, YV12, I420
ARGB, BGRA, RGB24, Cineon, DPX, RGB48
Custom using flexible hardware pixel format engine | | Supported APIs | Windows API C++, DirectShow Filters API, Mac OS X API C++, Linux API | | Dimensions | 7.24 x 4.73" (184 x 120.02 mm) |
